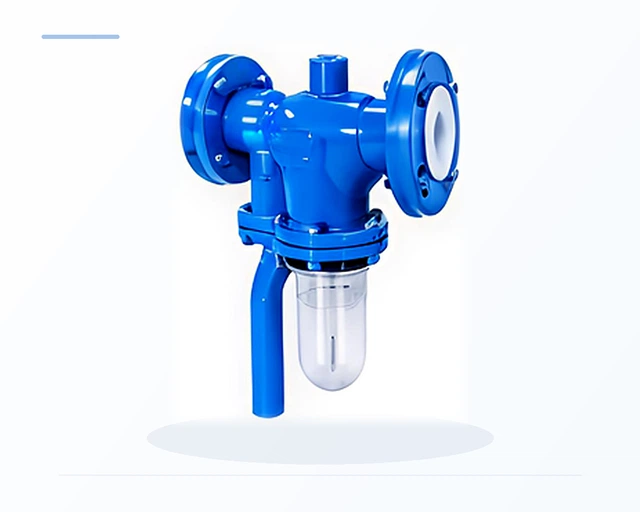

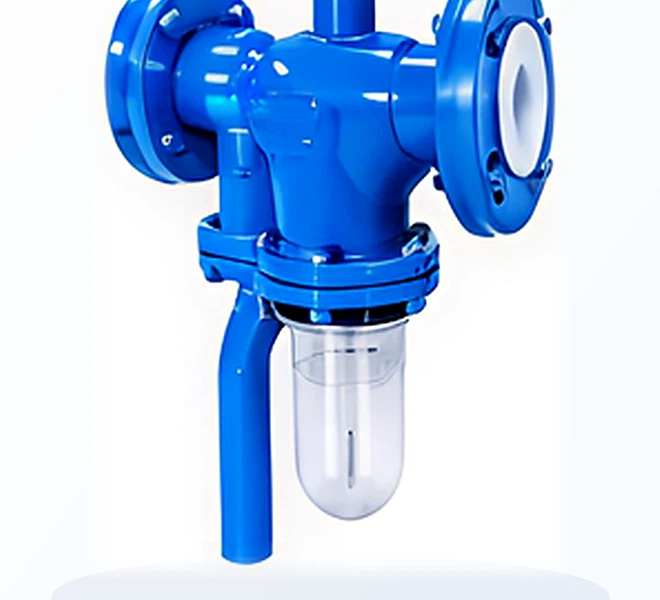

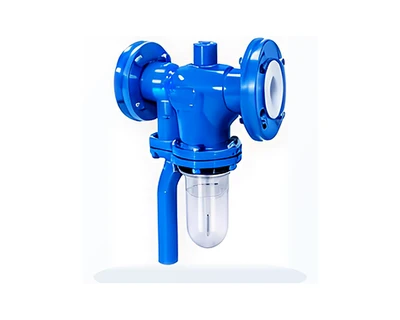

PTFE Lined Sampling Valve
Designed specifically for safe, zero-deadleg extraction of hazardous chemical samples from process vessels, tanks, and pipelines. The piston-type or needle-type PTFE tip ensures positive shut-off directly at the inner wall of the pipe, preventing fluid stagnation.
Request Fast Quotation for this Product
Quick ReplyKey Engineering Highlights
- Zero dead-space design ensures true representative sample without purging
- Spring-to-close dead-man hand lever for operator safety
- Optional sampling bottle connection and protective safety cabinet
- Available in lined and unlined alloy configurations
All components are manufactured in our specialized industrial facility located at GIDC Chhatral, Dist. Gandhinagar, Gujarat. The seamless fluoropolymer liner completely shields all wetted metal surfaces from chemical attack and fluid contamination.
Available Construction Variants
- In-Line Sampling Valve
- Vessel Bottom Sampling Valve
- Wafer Insertion Pattern
| Technical Parameter | Verified Specification Standards |
|---|---|
| Lining Material | PTFE, PFA |
| Body Material | Carbon Steel WCB, SS316 |
| Size Range | 1" x 1/2" (DN25 x DN15) to 3" x 1" (DN80 x DN25) |
| Pressure Rating | Class 150# (PN16) |
| Temperature Range | -29°C to +180°C |
| End Connection | Flanged inlet, threaded or quick-connect sampling outlet |
| Testing Standards | ASTM F1545, Factory Pressure Testing |
Lining Fluoropolymer Options
We select virgin grade fluoropolymers matched precisely to process chemistry and operating temperature:
- PTFE: -29°C to +200°C, universal chemical inertness, in-house paste extrusion.
- PFA: -29°C to +200°C, melt-processable, superior clarity and permeation resistance.
- FEP: -29°C to +150°C, high dielectric strength and smooth non-stick surface.
- PVDF / PP / HDPE: Cost-effective options for mild corrosive and water treatment lines.
Housing & Metallurgy Options
Rugged metallic outer shells provide high pressure containment and mechanical strength:
- Cast Steel: ASTM A216 Gr. WCB for heavy-duty pressure valves and fittings.
- Carbon Steel Pipe: ASTM A106 Gr. B seamless pipe spools with A105 flanges.
- Ductile Iron: ASTM A395 / GGG40.3 for economical vibration-absorbing installations.
- Stainless Steel: CF8 / CF8M (SS304/SS316) for highly corrosive external plant atmospheres.
