Engineered to Withstand the Most Corrosive Environments on Earth
Engineered to Withstand the Most Corrosive Environments on Earth
From 100% virgin raw fluoropolymer resins to multi-stage hydrostatic and electrostatic inspections, quality is engineered into every stage.
Our core engineering capability centers on processing high-performance virgin fluoropolymers and polymers including PTFE, PFA, FEP, PVDF, PP, and HDPE. By maintaining our own dedicated in-house PTFE liner manufacturing facility with advanced paste extrusion, we ensure consistent density, uniform wall thickness, and zero porosity.
In chemical, petrochemical, and pharmaceutical manufacturing, unplanned downtime and fluid leaks pose catastrophic safety and economic hazards. Every single BHUDEV POLYMER component is manufactured and tested in alignment with international standards such as ASTM F1545, incorporating systematic stage-wise checkpoints from raw material receipt to final dispatch.
Confirmed inspection methods conducted in compliance with ASTM F1545 international standards to verify body integrity, sealing security, and lining uniformity.

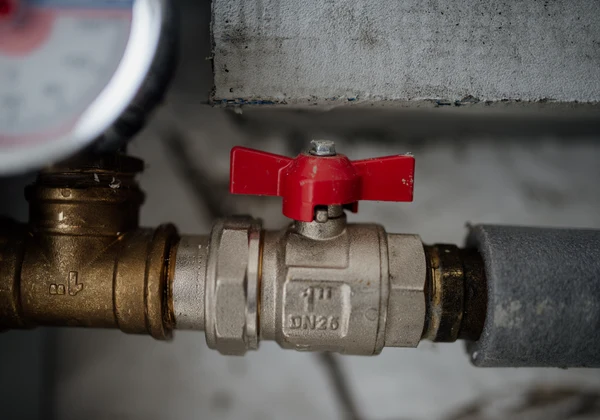

Components are filled with water and pressurized to 1.5 times the rated cold working pressure (up to 30 bar / 425 psi). This confirms the structural integrity of the steel/ductile iron outer housing, flanged joints, and ensures zero hydrostatic deformation or casing leakage.
Valve seat closure and stem packing seals undergo submerged or bubble air pressure testing at 6 bar (90 psi). This confirms bubble-tight shutoff (zero leakage rate A) and verifies liner retention under differential process pressure.

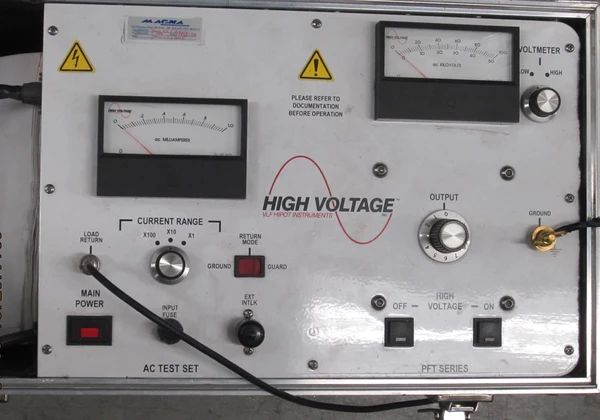

100% of the internal fluoropolymer surface is systematically swept with high-frequency DC spark detection (up to 20,000V - 25,000V). Any microscopic pinhole, porosity, or hairline defect triggers an immediate electrostatic alarm, guaranteeing a totally pinhole-free liner.
Incoming inspection of fluoropolymer resins (PTFE, PFA, FEP, PVDF) procured exclusively from approved global prime manufacturers. Steel housings (ASTM A106 Gr. B, A234 WPB, ASTM A216 WCB) are verified against Mill Test Certificates (MTC) prior to machining.

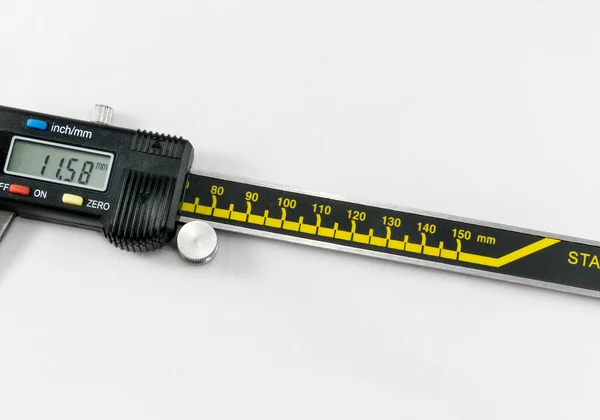

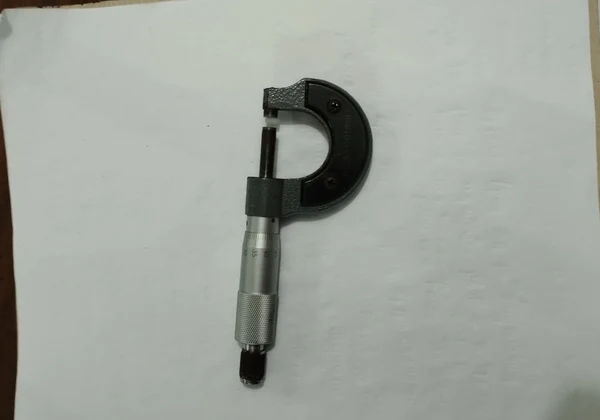

Precision digital calipers, micrometers, and ultrasonic thickness gauges verify that fluoropolymer liner wall thickness meets or exceeds ASTM F1545 specifications. Flange raised face diameters, bolt circles (ASME B16.5), and face-to-face lengths are rigorously checked.

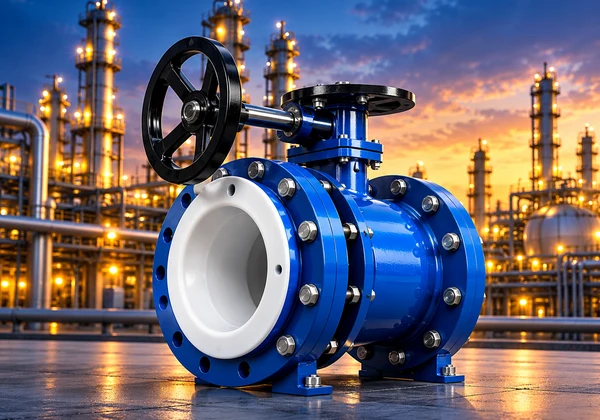

Full visual inspection for smooth liner surface finish, uniform flange flare geometry, external protective coating, and bore cleanliness. Approved pieces receive permanent serial/heat-number punch markings, inspection tags, and heavy-duty protective flange end caps.
A structured production workflow engineered to transform virgin fluoropolymers into certified corrosion-resistant fluid transfer systems.
Virgin fluoropolymer powders (PTFE, PFA, FEP) sourced solely from authorized prime producers. Steel pipes and cast housings verified with certified heat numbers.

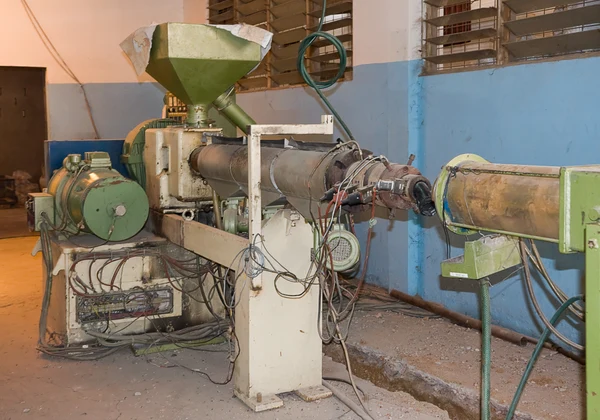

In-house paste extrusion technology converts fine PTFE powder into high-density tubular liners, sintered in precision programmable ovens through controlled heating and cooling cycles.
Transfer and injection moulding for complex valve bodies and tees. Precision thermo-forming flares liner ends over flange faces, creating seamless integral sealing gaskets.

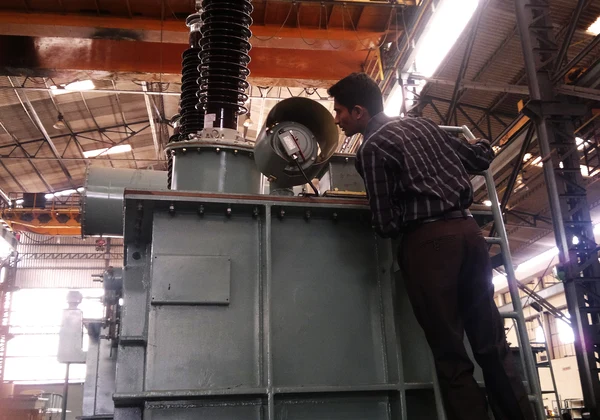

Every single piece undergoes non-destructive testing: 100% electrostatic spark testing (up to 25kV), hydrostatic proof pressure test, and pneumatic bubble seat testing per ASTM F1545.

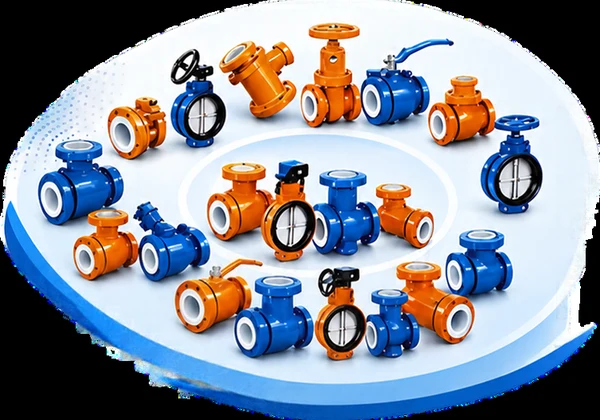

Bore cleaning, exterior finishing, protective end-cap fitting to safeguard flared sealing faces, identification punch tagging, and secure packaging for transit.
Systematic adherence to international manufacturing standards guarantees product interchangeability, pressure safety, and complete customer confidence.
BHUDEV POLYMER operates an independently certified ISO 9001:2015 Quality Management System. Every process from raw resin procurement to dispatch adheres to documented quality protocols.
All plastic-lined piping, fittings, and valves are manufactured and tested in alignment with ASTM F1545 — the international standard specification for plastic-lined ferrous metal fluid systems.
Our manufacturing operations are equipped for thorough material traceability throughout production and post-sales service, ensuring accountability for every installed component.
Engineered specifically for hazardous, high-purity, and aggressive chemical environments where fluid containment, corrosion prevention, and zero leakage are paramount.
Core Sector
Handling boiling mineral acids, caustic alkalis, organic solvents, and corrosive intermediates with total chemical inertness and zero liner permeation.
Petrochemical
High-integrity lined piping and valves engineered to withstand corrosive hydrocarbon streams, sour gas lines, and high-temperature petrochemical processing.
High Purity

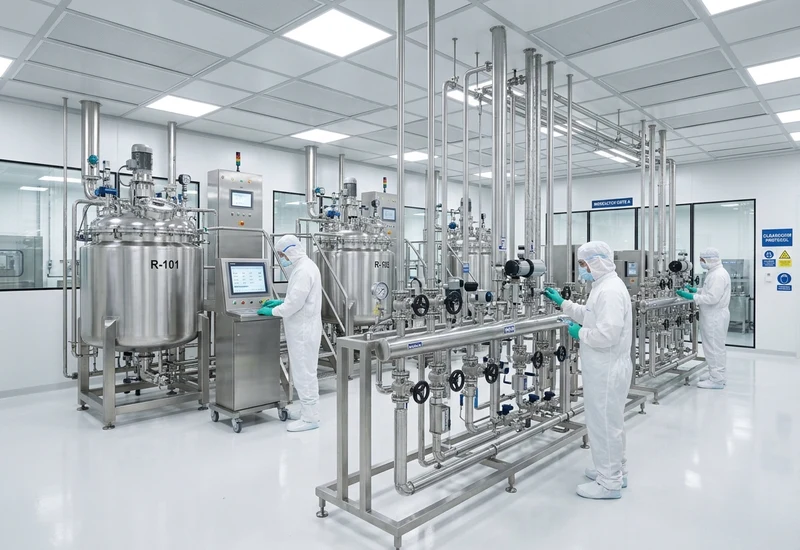

Ultra-smooth, non-contaminating fluoropolymer fluid contact surfaces preventing batch contamination, metallic leaching, and product adherence in API synthesis.
Utilities

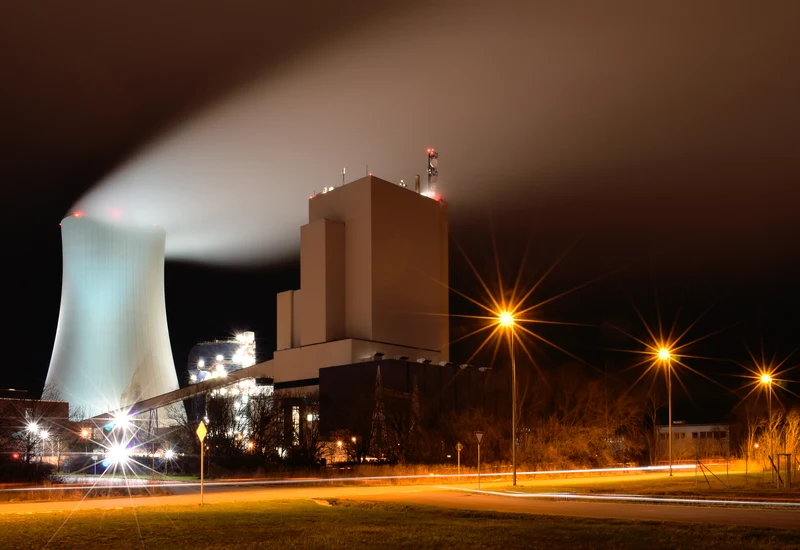

Corrosion-resistant flow systems for Flue Gas Desulfurization (FGD), acidic scrubber effluent, demineralized water circuits, and chemical regeneration lines.
Agrochemical
Impervious fluoropolymer-lined spools and valves preventing dangerous leaks and metal attack during corrosive pesticide, herbicide, and fertilizer synthesis.

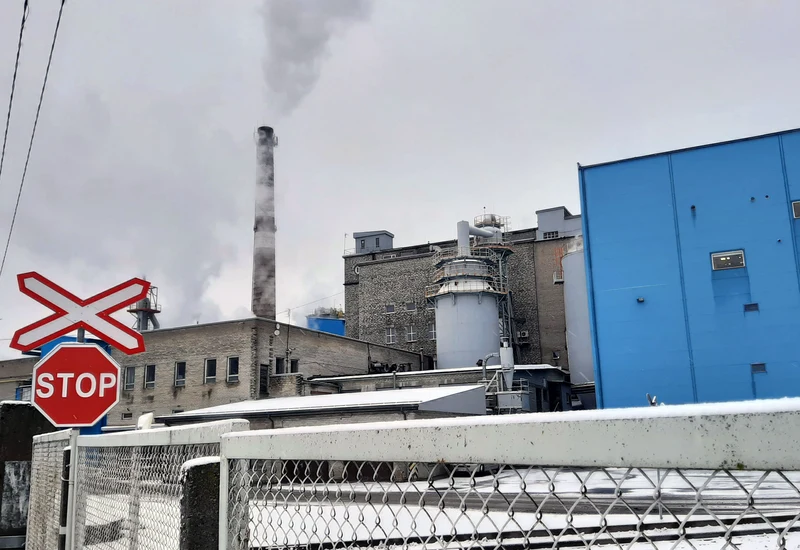

Process Plant
Engineered to endure harsh chemical bleaching reagents, chlorine dioxide, sodium hypochlorite, and caustic cooking liquors that erode conventional alloys.

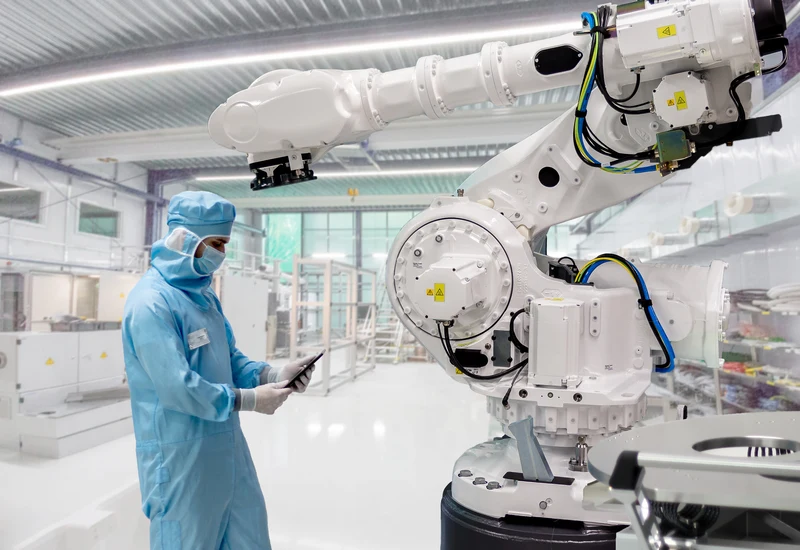

Ultra-Pure
Zero-extractable virgin fluoropolymer components ensuring ionic cleanliness, sub-ppb impurity levels, and chemical resistance for etching and wet-bench lines.
Effluent / ETP
Robust corrosion barriers for industrial ETP and CETP facilities handling severe acid/alkali neutralization, aggressive chemical oxidizers, and toxic effluents.

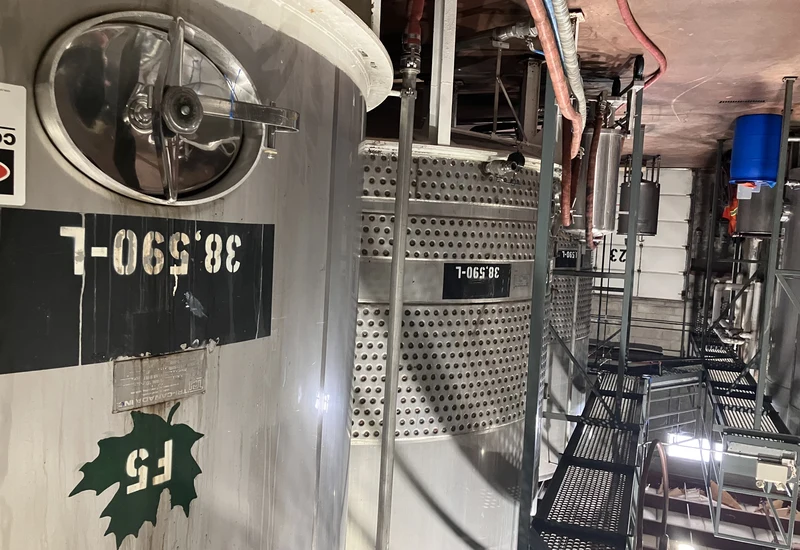

Sanitary Process
Hygienic, non-stick, non-contaminating fluoropolymer fluid paths resistant to aggressive Clean-In-Place (CIP) sanitation chemicals and thermal steam sterilization.
Refining
Resisting harsh sulfuric alkylation, sour water stripping, amine sweetening units, and hot caustic washes without chemical embrittlement or seal failure.
Engineered capabilities, qualified technical leadership, and strict adherence to process discipline.
We maintain our own dedicated in-house PTFE liner manufacturing facility utilizing advanced paste extrusion technology, ensuring consistent density, uniform wall thickness, and zero porosity.
All major raw materials and fluoropolymer powders are procured exclusively from approved global prime manufacturers, eliminating reground or degraded polymer compromises.
Our production process is systematically equipped for traceability of materials, batch sintering cycles, and inspection logs throughout manufacturing and post-sales service.
Our young and dynamic engineering and supporting team is experienced and technically qualified to manage critical plant maintenance requirements and turnkey project supply.
