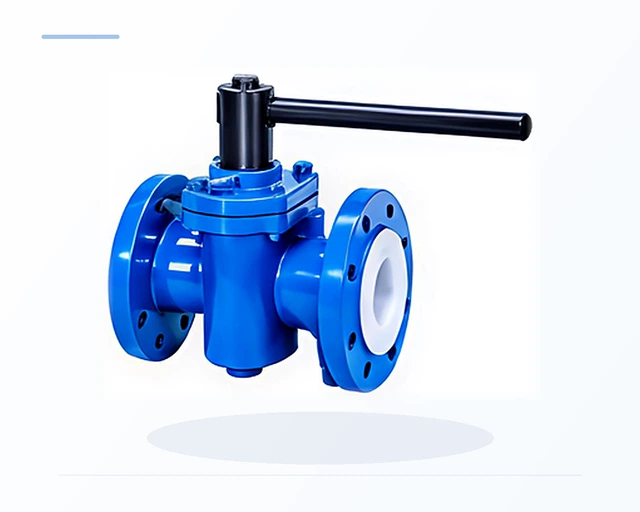

PTFE Lined Plug Valve
Designed for severe chemical applications where cavitation, scaling, or crystallizing media occur. The solid fluoropolymer liner completely shields all wetted metallic components, while the precision machined plug ensures tight bidirectional shutoff without any requirement for line lubrication.
Request Fast Quotation for this Product
Quick ReplyKey Engineering Highlights
- No cavities where fluid can settle, preventing contamination
- Bi-directional bubble-tight shut-off across full pressure range
- In-line adjustable plug seal without removing valve from pipe
- Available in both jacketed and non-jacketed configurations
- Low operating torque with smooth fluoropolymer-to-fluoropolymer contact
All components are manufactured in our specialized industrial facility located at GIDC Chhatral, Dist. Gandhinagar, Gujarat. The seamless fluoropolymer liner completely shields all wetted metal surfaces from chemical attack and fluid contamination.
Available Construction Variants
- Standard 2-Way Non-Jacketed
- Full Jacketed
- 3-Way Multiport Flow
| Technical Parameter | Verified Specification Standards |
|---|---|
| Lining Material | PFA, FEP, PTFE |
| Body Material | WCB Carbon Steel, Ductile Iron, CF8M Stainless Steel |
| Size Range | 1/2" (DN15) to 6" (DN150) |
| Pressure Rating | Class 150# / PN16 |
| Temperature Range | -29°C to +180°C |
| End Connection | Flanged ANSI B16.5 RF |
| Testing Standards | ASTM F1545, API 598 |
Lining Fluoropolymer Options
We select virgin grade fluoropolymers matched precisely to process chemistry and operating temperature:
- PTFE: -29°C to +200°C, universal chemical inertness, in-house paste extrusion.
- PFA: -29°C to +200°C, melt-processable, superior clarity and permeation resistance.
- FEP: -29°C to +150°C, high dielectric strength and smooth non-stick surface.
- PVDF / PP / HDPE: Cost-effective options for mild corrosive and water treatment lines.
Housing & Metallurgy Options
Rugged metallic outer shells provide high pressure containment and mechanical strength:
- Cast Steel: ASTM A216 Gr. WCB for heavy-duty pressure valves and fittings.
- Carbon Steel Pipe: ASTM A106 Gr. B seamless pipe spools with A105 flanges.
- Ductile Iron: ASTM A395 / GGG40.3 for economical vibration-absorbing installations.
- Stainless Steel: CF8 / CF8M (SS304/SS316) for highly corrosive external plant atmospheres.
