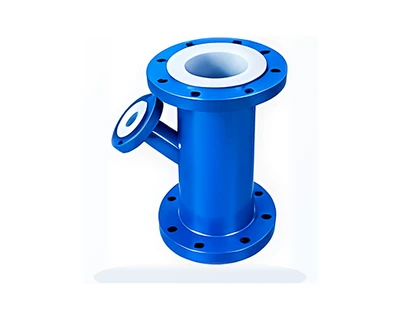

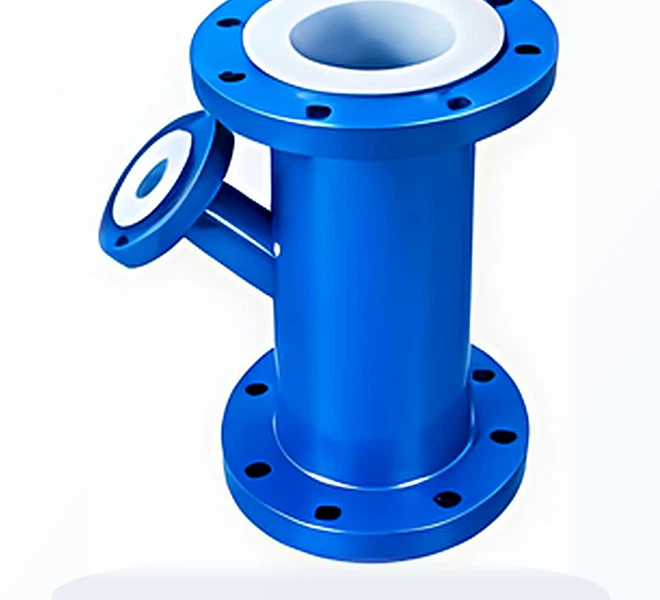

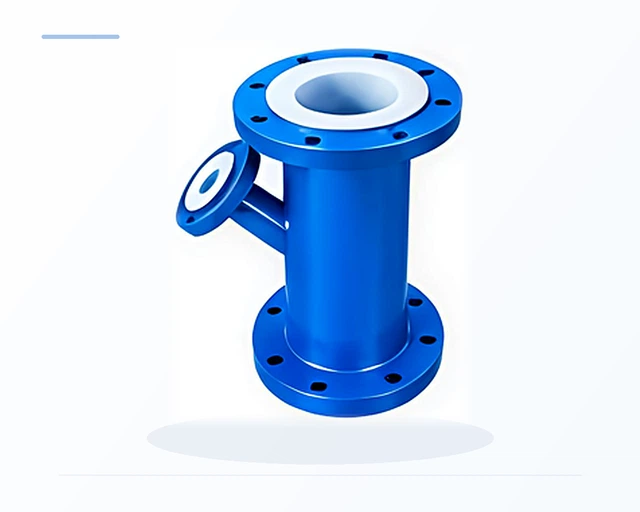

PTFE Lined Lateral Tee (45°)
Crucial for applications where two chemical streams merge or where slurry settles in traditional 90-degree junctions. The 45-degree angle ensures smooth confluence and minimizes solids buildup.
Request Fast Quotation for this Product
Quick ReplyKey Engineering Highlights
- Smooth 45-degree branch geometry minimizes flow resistance
- Prevents slurry sedimentation and erosion wear at intersection
- Precision molded fluoropolymer liner covers full internal contours
- Tested for vacuum integrity and pinhole absence
All components are manufactured in our specialized industrial facility located at GIDC Chhatral, Dist. Gandhinagar, Gujarat. The seamless fluoropolymer liner completely shields all wetted metal surfaces from chemical attack and fluid contamination.
Available Construction Variants
- Standard Equal Lateral
- Reducing Lateral Tee
| Technical Parameter | Verified Specification Standards |
|---|---|
| Lining Material | PTFE, PFA |
| Body Material | Fabricated ASTM A234 WPB / A106 Gr. B |
| Size Range | 1" (DN25) to 10" (DN250) |
| Pressure Rating | Class 150# |
| Temperature Range | -29°C to +180°C |
| End Connection | Flanged ANSI B16.5 RF |
| Testing Standards | ASTM F1545 |
Lining Fluoropolymer Options
We select virgin grade fluoropolymers matched precisely to process chemistry and operating temperature:
- PTFE: -29°C to +200°C, universal chemical inertness, in-house paste extrusion.
- PFA: -29°C to +200°C, melt-processable, superior clarity and permeation resistance.
- FEP: -29°C to +150°C, high dielectric strength and smooth non-stick surface.
- PVDF / PP / HDPE: Cost-effective options for mild corrosive and water treatment lines.
Housing & Metallurgy Options
Rugged metallic outer shells provide high pressure containment and mechanical strength:
- Cast Steel: ASTM A216 Gr. WCB for heavy-duty pressure valves and fittings.
- Carbon Steel Pipe: ASTM A106 Gr. B seamless pipe spools with A105 flanges.
- Ductile Iron: ASTM A395 / GGG40.3 for economical vibration-absorbing installations.
- Stainless Steel: CF8 / CF8M (SS304/SS316) for highly corrosive external plant atmospheres.
