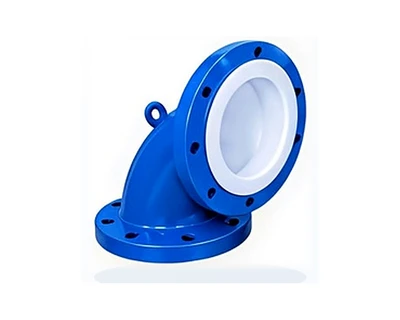

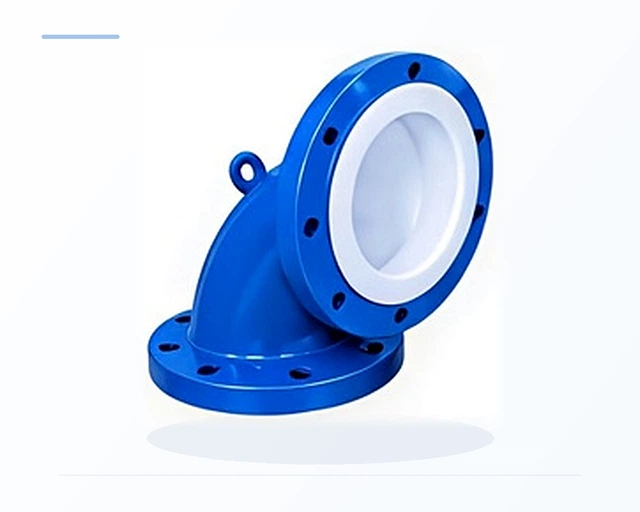

PTFE Lined 90° Elbow
Manufactured in full compliance with ASTM F1545 dimensions and specifications. The heavy-duty steel shell houses a precision transfer-moulded or paste-extruded fluoropolymer liner with thick flared faces that mate directly with adjacent piping components.
Request Fast Quotation for this Product
Quick ReplyKey Engineering Highlights
- Precision contour reduces flow turbulence and slurry erosion
- Seamless one-piece liner prevents joint vulnerability
- Available in both Cast Ductile Iron / WCB and Fabricated ASTM A234 WPB shells
- Jacketed variants available for process temperature maintenance
- Dovetail retention grooves prevent liner displacement under thermal cycling
All components are manufactured in our specialized industrial facility located at GIDC Chhatral, Dist. Gandhinagar, Gujarat. The seamless fluoropolymer liner completely shields all wetted metal surfaces from chemical attack and fluid contamination.
Available Construction Variants
- Standard 90° Cast Elbow
- Fabricated 90° Long Radius Elbow
- Full Jacketed 90° Elbow
| Technical Parameter | Verified Specification Standards |
|---|---|
| Lining Material | PTFE (Virgin Grade), PFA, FEP, PVDF |
| Body Material | Cast Ductile Iron ASTM A395, Carbon Steel ASTM A216 WCB / ASTM A234 WPB, SS316 |
| Size Range | 1/2" (DN15) to 12" (DN300) |
| Pressure Rating | Class 150# / Class 300# / PN10 / PN16 / Full Vacuum |
| Temperature Range | -29°C to +200°C |
| End Connection | ANSI B16.5 Class 150 RF / Class 300 RF |
| Testing Standards | ASTM F1545, Hydrostatic 30 kg/cm², Spark Test 20kV DC |
Lining Fluoropolymer Options
We select virgin grade fluoropolymers matched precisely to process chemistry and operating temperature:
- PTFE: -29°C to +200°C, universal chemical inertness, in-house paste extrusion.
- PFA: -29°C to +200°C, melt-processable, superior clarity and permeation resistance.
- FEP: -29°C to +150°C, high dielectric strength and smooth non-stick surface.
- PVDF / PP / HDPE: Cost-effective options for mild corrosive and water treatment lines.
Housing & Metallurgy Options
Rugged metallic outer shells provide high pressure containment and mechanical strength:
- Cast Steel: ASTM A216 Gr. WCB for heavy-duty pressure valves and fittings.
- Carbon Steel Pipe: ASTM A106 Gr. B seamless pipe spools with A105 flanges.
- Ductile Iron: ASTM A395 / GGG40.3 for economical vibration-absorbing installations.
- Stainless Steel: CF8 / CF8M (SS304/SS316) for highly corrosive external plant atmospheres.
