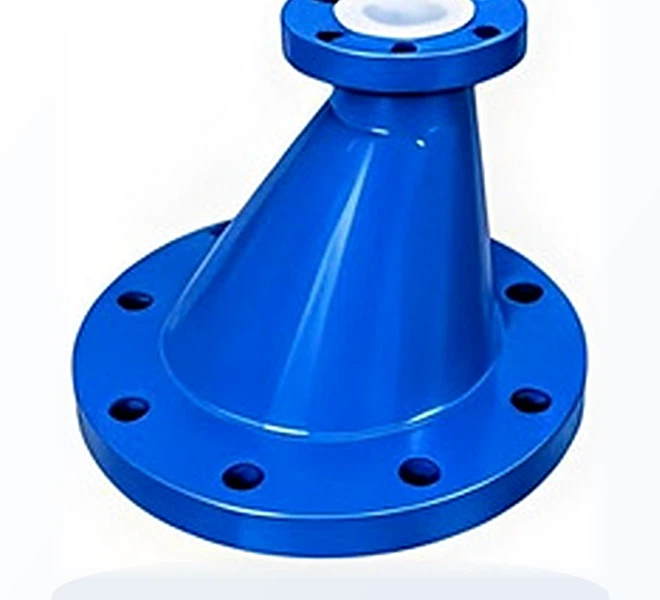

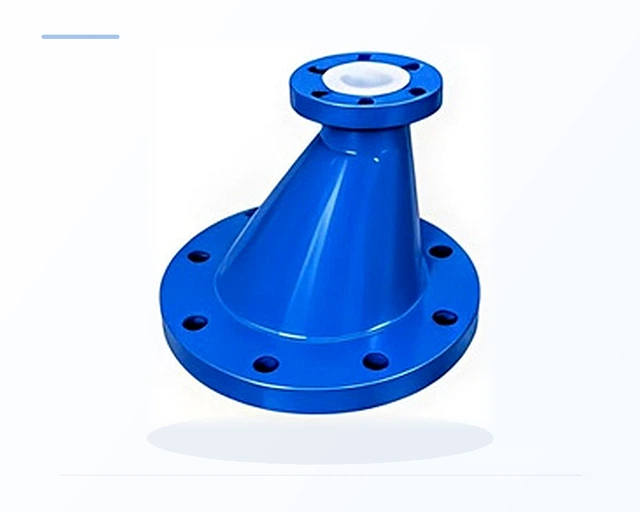

PTFE Lined Eccentric Reducer
Crucial for horizontal piping arrangements where preventing vapor pocket formation at pump suction nozzles (flat on top) or ensuring complete liquid drainage (flat on bottom) is mandatory.
Request Fast Quotation for this Product
Quick ReplyKey Engineering Highlights
- Flat-side design prevents vapor entrapment at pump inlets
- Facilitates 100% complete gravity drainage of hazardous fluids
- Fully lined with thick virgin fluoropolymer
- Flanged ends with standard ANSI bolt patterns
All components are manufactured in our specialized industrial facility located at GIDC Chhatral, Dist. Gandhinagar, Gujarat. The seamless fluoropolymer liner completely shields all wetted metal surfaces from chemical attack and fluid contamination.
Available Construction Variants
- Flat on Top (Pump Suction)
- Flat on Bottom (Drain Lines)
| Technical Parameter | Verified Specification Standards |
|---|---|
| Lining Material | PTFE, PFA |
| Body Material | Carbon Steel ASTM A234 WPB |
| Size Range | 1" x 1/2" to 12" x 8" |
| Pressure Rating | Class 150# / Full Vacuum |
| Temperature Range | -29°C to +200°C |
| End Connection | ANSI B16.5 Class 150 |
| Testing Standards | ASTM F1545 |
Lining Fluoropolymer Options
We select virgin grade fluoropolymers matched precisely to process chemistry and operating temperature:
- PTFE: -29°C to +200°C, universal chemical inertness, in-house paste extrusion.
- PFA: -29°C to +200°C, melt-processable, superior clarity and permeation resistance.
- FEP: -29°C to +150°C, high dielectric strength and smooth non-stick surface.
- PVDF / PP / HDPE: Cost-effective options for mild corrosive and water treatment lines.
Housing & Metallurgy Options
Rugged metallic outer shells provide high pressure containment and mechanical strength:
- Cast Steel: ASTM A216 Gr. WCB for heavy-duty pressure valves and fittings.
- Carbon Steel Pipe: ASTM A106 Gr. B seamless pipe spools with A105 flanges.
- Ductile Iron: ASTM A395 / GGG40.3 for economical vibration-absorbing installations.
- Stainless Steel: CF8 / CF8M (SS304/SS316) for highly corrosive external plant atmospheres.
