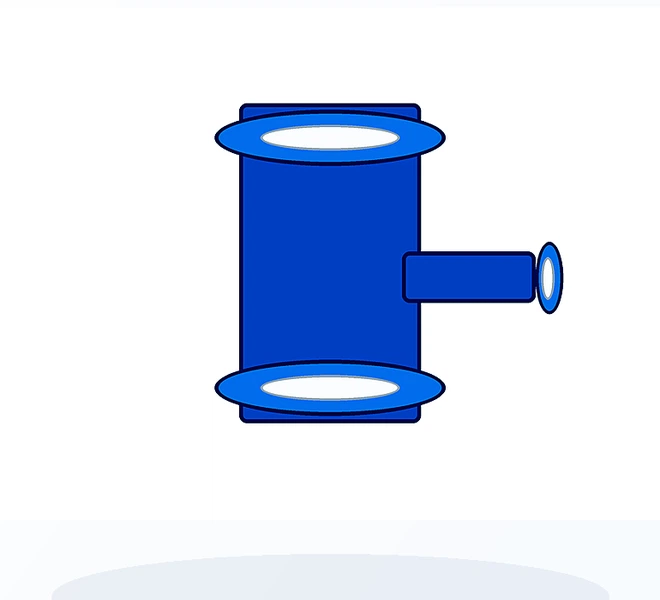

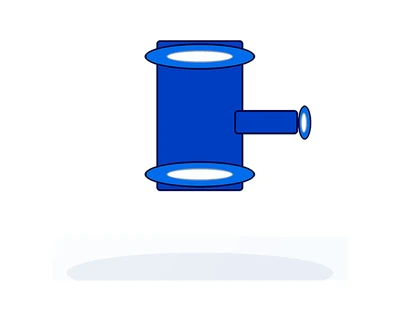

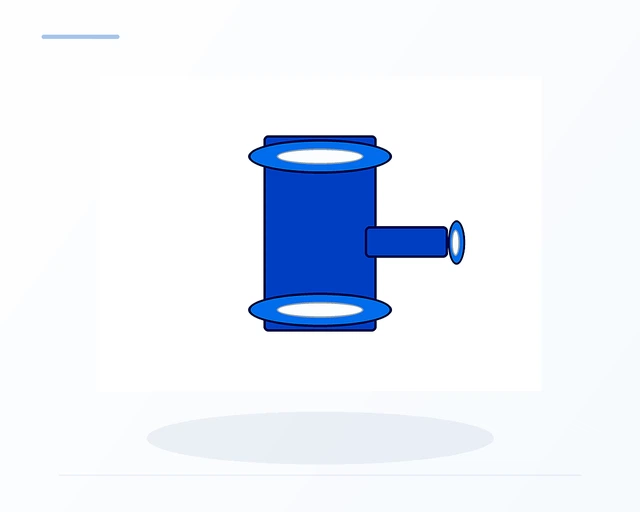

PTFE Lined Columns
Bhudev Polymer manufactures heavy-duty PTFE Lined Column spools for corrosive absorption, distillation, and gas scrubber operations. Internal support rings and tray support ledges are fully encapsulated in fluoropolymer to support column internals.
Request Fast Quotation for this Product
Quick ReplyKey Engineering Highlights
- Large diameter spools up to DN600 (24") lined with heavy-wall PTFE / PFA
- Integrated lined support ledges for packing support plates and liquid distributors
- High vacuum stability engineered with mechanical retention keys
- Complete custom nozzle orientation per column process engineering drawings
All components are manufactured in our specialized industrial facility located at GIDC Chhatral, Dist. Gandhinagar, Gujarat. The seamless fluoropolymer liner completely shields all wetted metal surfaces from chemical attack and fluid contamination.
Available Construction Variants
- Packing Support Column Section
- Feed Distributor Section
- Column Sump Section
| Technical Parameter | Verified Specification Standards |
|---|---|
| Lining Material | Heavy-Wall Paste Extruded PTFE, PFA Sheet Lined |
| Body Material | Fabricated Carbon Steel ASTM A106 Gr. B / A516 Gr. 70 |
| Size Range | 8" (DN200) to 24" (DN600), lengths up to 3000mm |
| Pressure Rating | Full Vacuum to 10 Bar |
| Temperature Range | -29°C to +200°C |
| End Connection | Flanged ANSI Class 150 / DIN Standards |
| Testing Standards | ASTM F1545, Spark Test 20kV, Full Vacuum Proof Test |
Lining Fluoropolymer Options
We select virgin grade fluoropolymers matched precisely to process chemistry and operating temperature:
- PTFE: -29°C to +200°C, universal chemical inertness, in-house paste extrusion.
- PFA: -29°C to +200°C, melt-processable, superior clarity and permeation resistance.
- FEP: -29°C to +150°C, high dielectric strength and smooth non-stick surface.
- PVDF / PP / HDPE: Cost-effective options for mild corrosive and water treatment lines.
Housing & Metallurgy Options
Rugged metallic outer shells provide high pressure containment and mechanical strength:
- Cast Steel: ASTM A216 Gr. WCB for heavy-duty pressure valves and fittings.
- Carbon Steel Pipe: ASTM A106 Gr. B seamless pipe spools with A105 flanges.
- Ductile Iron: ASTM A395 / GGG40.3 for economical vibration-absorbing installations.
- Stainless Steel: CF8 / CF8M (SS304/SS316) for highly corrosive external plant atmospheres.
