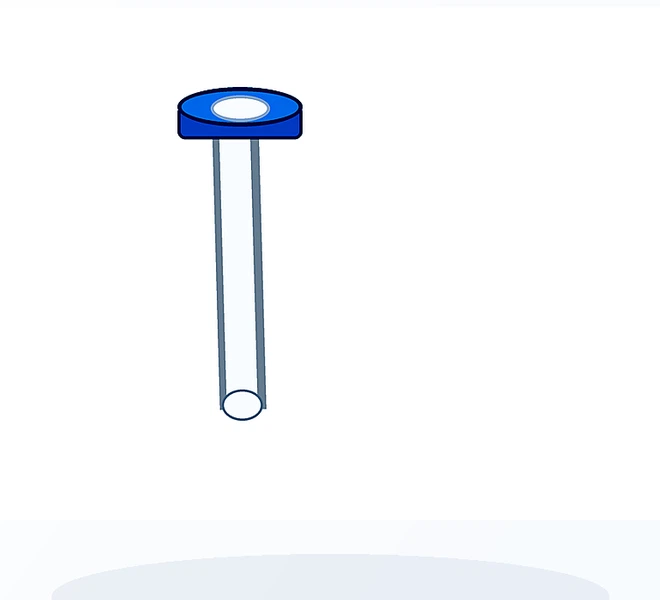

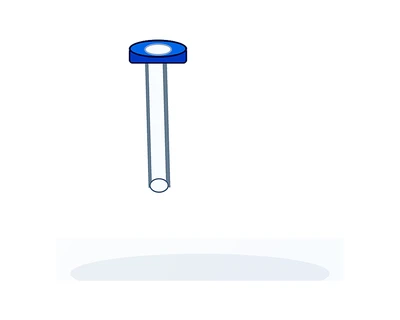

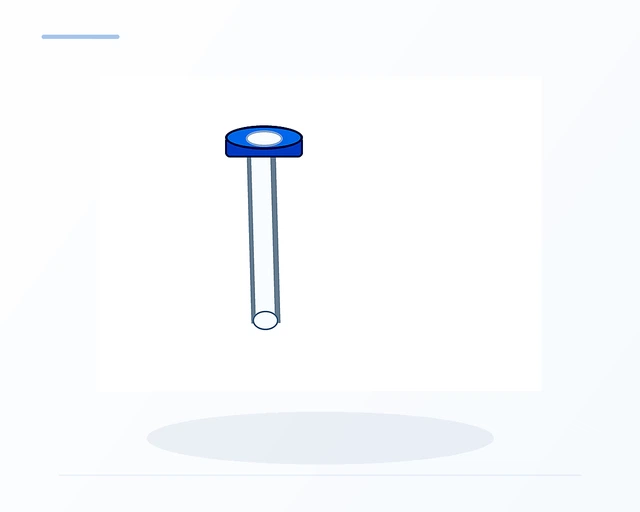

PTFE Lined Dip Pipe & Sparger
Engineered to withstand aggressive fluid agitation, vortex forces, and corrosive chemical vapors inside stirred tank reactors. Constructed with a rigid carbon steel or stainless steel schedule 80 core completely enclosed in seamless virgin PTFE.
Request Fast Quotation for this Product
Quick ReplyKey Engineering Highlights
- Rigid schedule 80 steel core resists intense agitator fluid dynamics
- Seamless virgin PTFE sleeve covers outer surface, tip, and upper flange face
- Available as straight charging dip pipe or perforated gas sparger tube
- Curved discharge angles available to direct reactants away from vessel walls
All components are manufactured in our specialized industrial facility located at GIDC Chhatral, Dist. Gandhinagar, Gujarat. The seamless fluoropolymer liner completely shields all wetted metal surfaces from chemical attack and fluid contamination.
Available Construction Variants
- Straight Liquid Feed Dip Pipe
- Perforated Gas Sparger Pipe
- J-Bend Anti-Vortex Dip Pipe
| Technical Parameter | Verified Specification Standards |
|---|---|
| Lining Material | PTFE (Seamless Paste-Extruded Heavy Wall) |
| Body Material | Seamless Carbon Steel Pipe / SS316 Core |
| Size Range | 1" (DN25) to 6" (DN150), immersion lengths up to 3.5 meters |
| Pressure Rating | Class 150# Flange Mounting |
| Temperature Range | -29°C to +200°C |
| End Connection | ANSI Class 150 / DIN Flanged Top Nozzle |
| Testing Standards | ASTM F1545, 20kV Spark Tested Along Full Length |
Lining Fluoropolymer Options
We select virgin grade fluoropolymers matched precisely to process chemistry and operating temperature:
- PTFE: -29°C to +200°C, universal chemical inertness, in-house paste extrusion.
- PFA: -29°C to +200°C, melt-processable, superior clarity and permeation resistance.
- FEP: -29°C to +150°C, high dielectric strength and smooth non-stick surface.
- PVDF / PP / HDPE: Cost-effective options for mild corrosive and water treatment lines.
Housing & Metallurgy Options
Rugged metallic outer shells provide high pressure containment and mechanical strength:
- Cast Steel: ASTM A216 Gr. WCB for heavy-duty pressure valves and fittings.
- Carbon Steel Pipe: ASTM A106 Gr. B seamless pipe spools with A105 flanges.
- Ductile Iron: ASTM A395 / GGG40.3 for economical vibration-absorbing installations.
- Stainless Steel: CF8 / CF8M (SS304/SS316) for highly corrosive external plant atmospheres.
